Overview
This template allows creating a call flow that will play a single prompt, and then transfer the call to the specified destination when the user presses a specific DTMF key. The prompt to play could be a Text Prompt, in which the audio is automatically generated using text to speech, or a WAV Prompt, in which you upload the WAV file to play.
Steps
Step 1 - Call Flow name
Enter a name for the call flow.

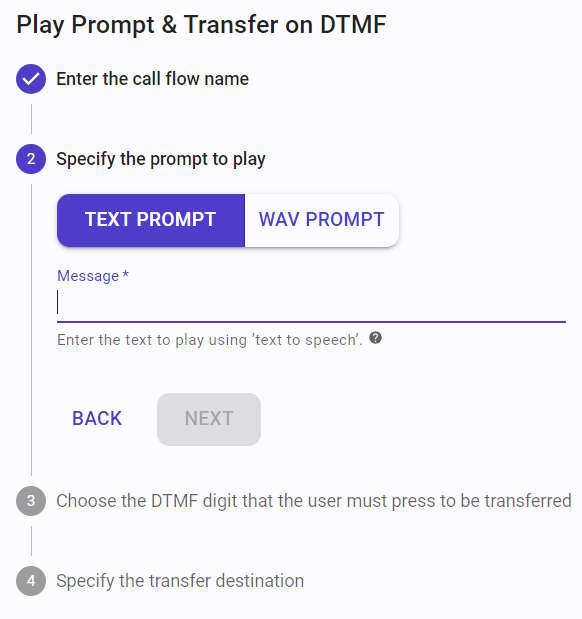

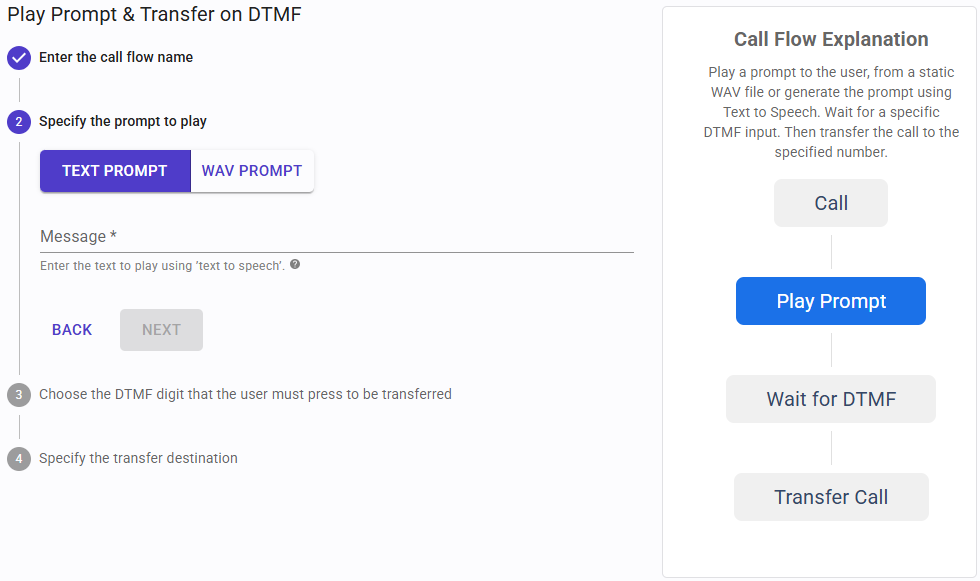

Step 2 - Configure the prompt to play
When configuring the prompt to play, you can select a Text Prompt or WAV Prompt:
- For Text Prompt:
- Message: this is the text of the prompt to play. The message can be static, or have variables, to play a different prompt on each call, for example an appointment date, a due balance, and so on. Variables are specified in square brackets:
Hello [CustomerName], you have an appointment with us on [AppointmentDate].
You will be able to provide variable values for each call when uploading the numbers for the campaign.
The message can be plain text, or SSML to customize the generated audio by providing details on pauses, and audio formatting for acronyms, dates, times, abbreviations, or text that should be censored. More information here and here.
- For WAV Prompt:
- Upload File: the WAV file must have the following format:
- Format: WAV
- Channel: Mono
- Bit rate: 8 kHz
- Sampling: 16 bit
- Maximum size: 5Mb

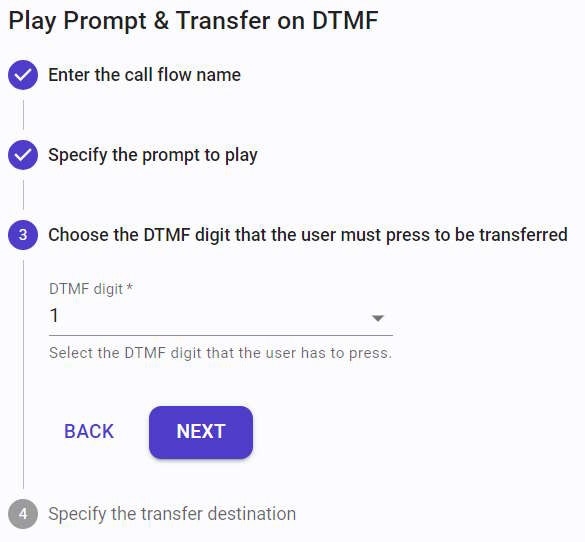

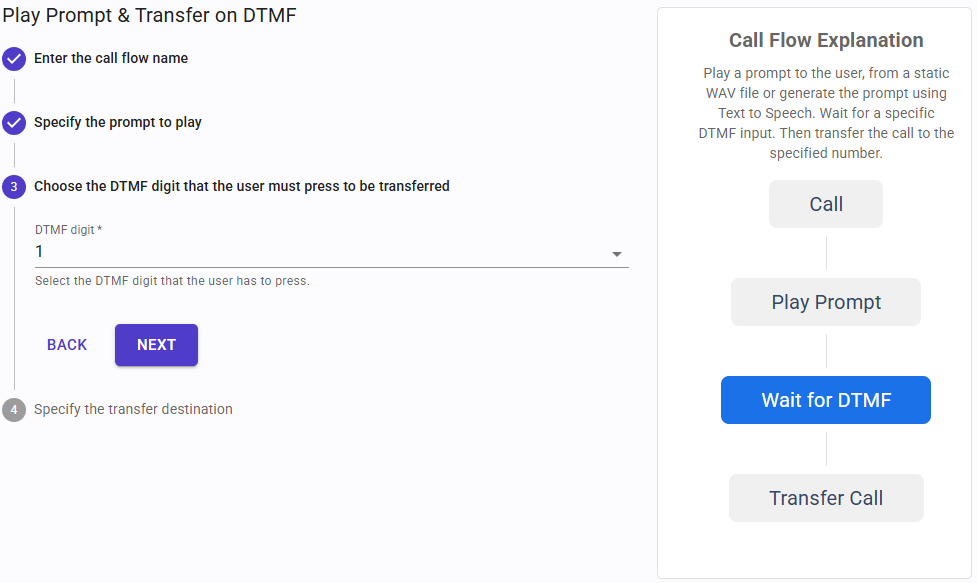

Step 3 - Specify the DTMF digit to be transferred
Select which DTMF digit must be pressed by the user in order to be transferred. If the user presses a different digit or no digit, the previous prompt will be played again. The user has 3 attempts to provide this, otherwise the call will be dropped.

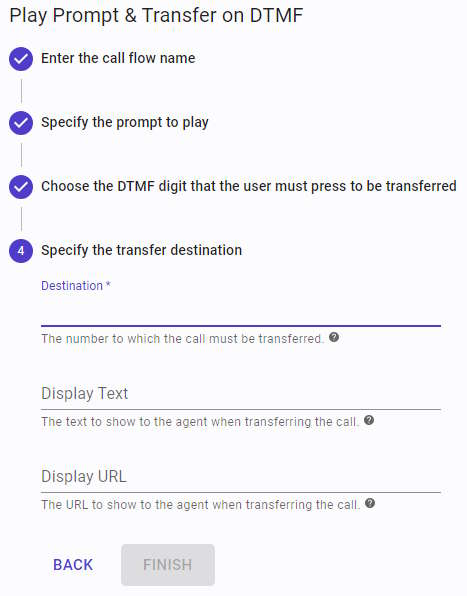

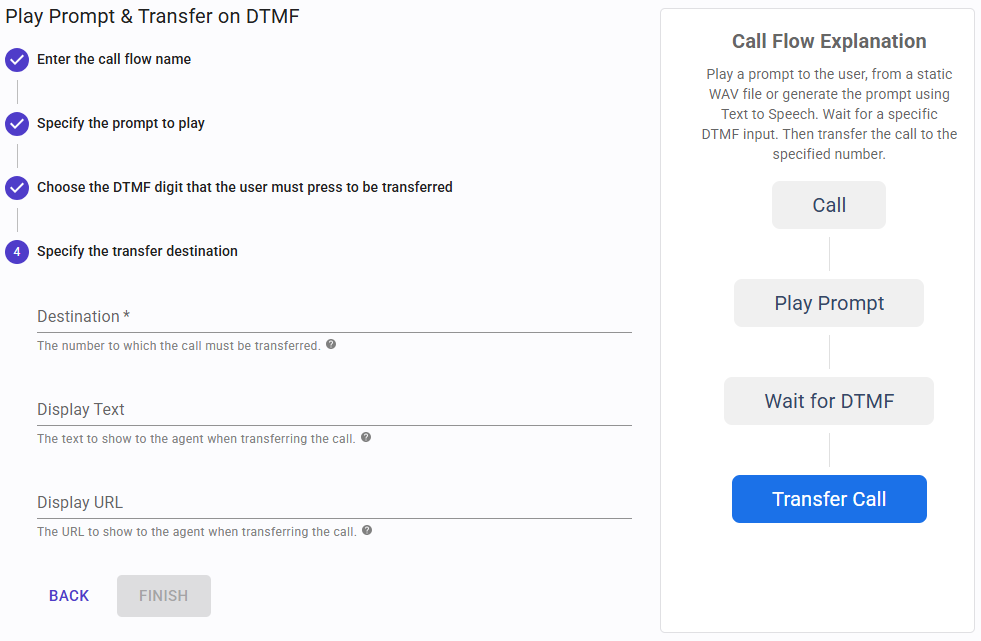

Step 4 - Specify the transfer destination
The Destination is the number to which the call must be transferred. You can specify a static number here, for example the extension number of a queue where all your agents are waiting for these calls, or you can also use variables, for example to transfer the call to the agent associated with a particular customer. Variables are specified in square brackets:
[AgentExtension]
You will be able to provide a value for each call when uploading the numbers for the campaign.
When using 3CX Phone System and the call is transferred to an agent while running a campaign in predictive dialer mode, SIP Caller can show custom text and a custom URL to the agent using the 3CX Web Client. The text and URL specified here can have static and dynamic parts, using variables.
